A residential systems installation bringing network infrastructure, surveillance, distributed audio, and multiple displays together behind the finished space.

Period

Date not recorded

Area

Infrastructure & Networking · Commercial AV · Low Voltage & Building Systems

Status

Archive collection

Cover photograph for Commerce systems installation

Context

The visible result was a set of cleanly integrated displays, audio, surveillance, and controls. Behind it sat the less visible work: cable routes, terminations, network equipment, power, and a central rack that made the systems serviceable.

The work

This kind of installation crosses several trades. It requires planning where equipment will live, pulling and terminating cable before finishes close the walls, mounting devices accurately, configuring the network, and tracing problems when one part of the system does not behave as expected.

What I took from it

Good systems disappear into the finished room, but they should never be inaccessible. The rack, labels, cable paths, and service clearances matter as much as the visible hardware because someone will eventually need to understand and repair the system.

Project record

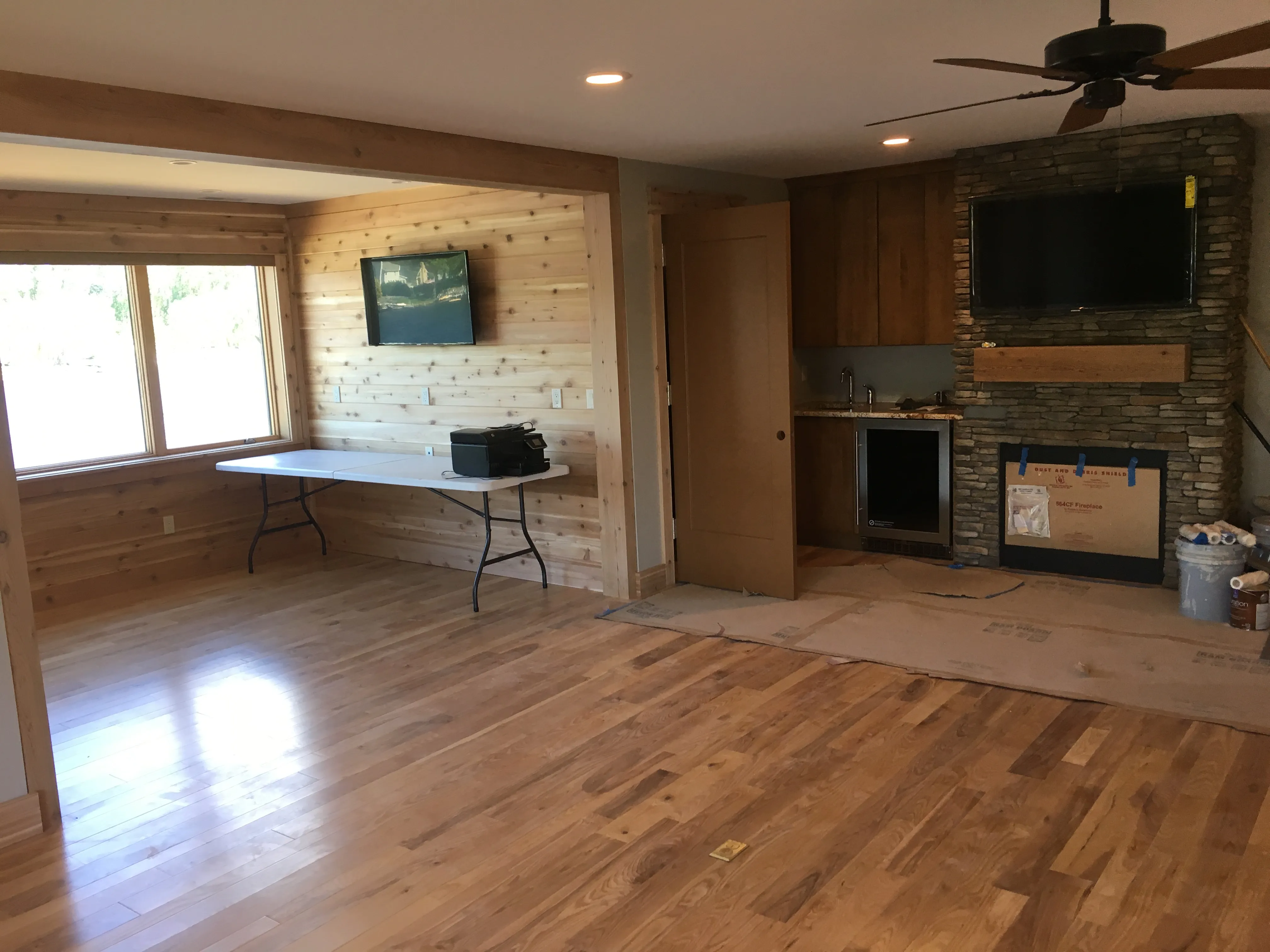

Wide view of the installation site with wall-mounted displays, lighting, and finished woodwork
01The finished rooms only show a small part of the system. Power, data, control, and audio paths converge behind the walls and in the equipment rack.
Ceiling-mounted surveillance camera above a glass entry door
02A surveillance camera placed to cover the entry while remaining visually unobtrusive.

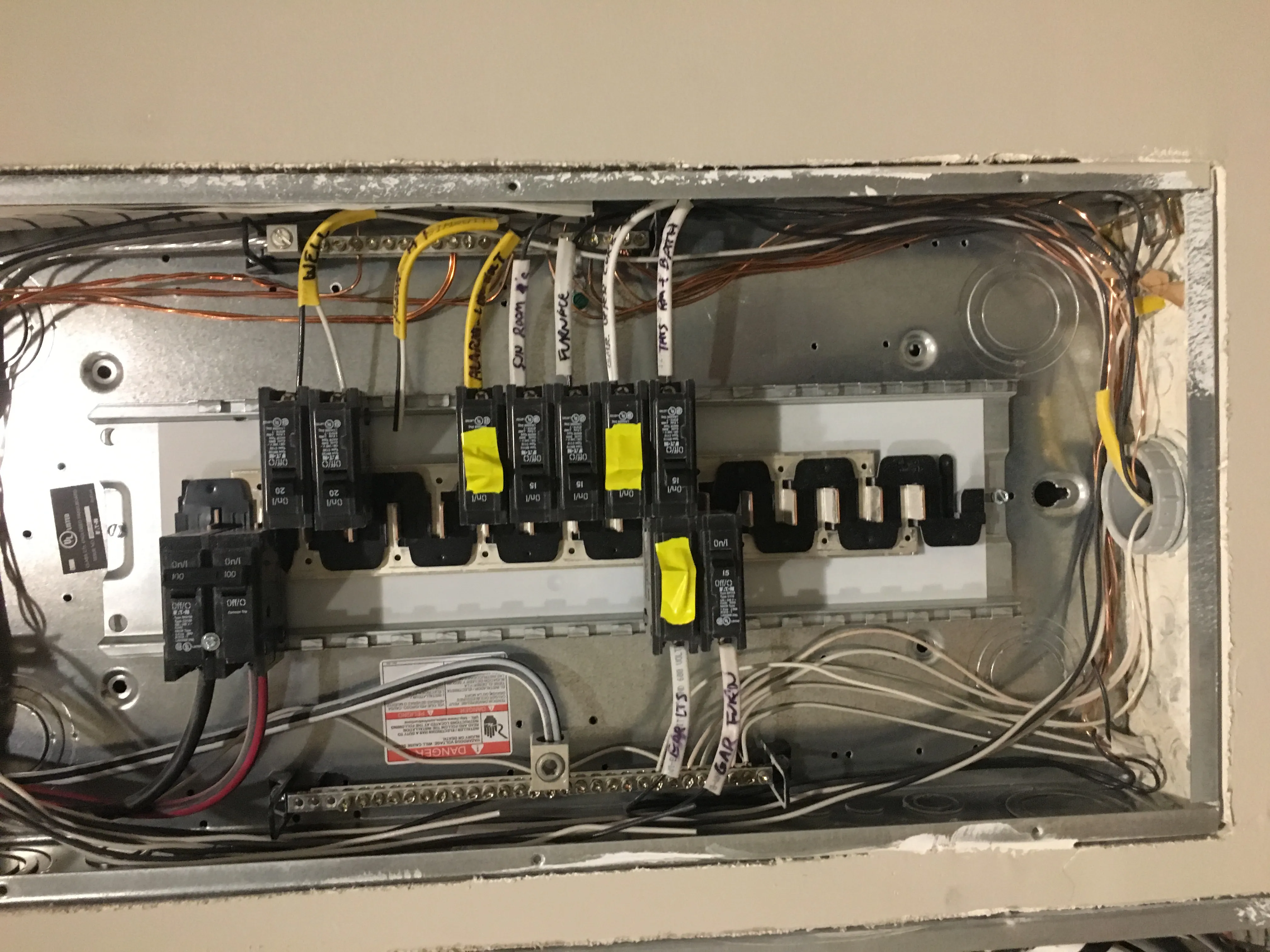

Open electrical panel with labeled branch circuits during installation
03Electrical distribution documented while the surrounding systems were still being completed.
Wall-mounted television and soundbar above a stone fireplace
04One of several finished display and audio locations integrated into the building fabric.
Large television and soundbar installed over a central stone fireplace
05The principal viewing area after display and audio installation.
Open equipment rack during network and AV wiring
06The rack during installation, before final dressing and organization.
Network switch, patch panels, and organized blue and white patch cables

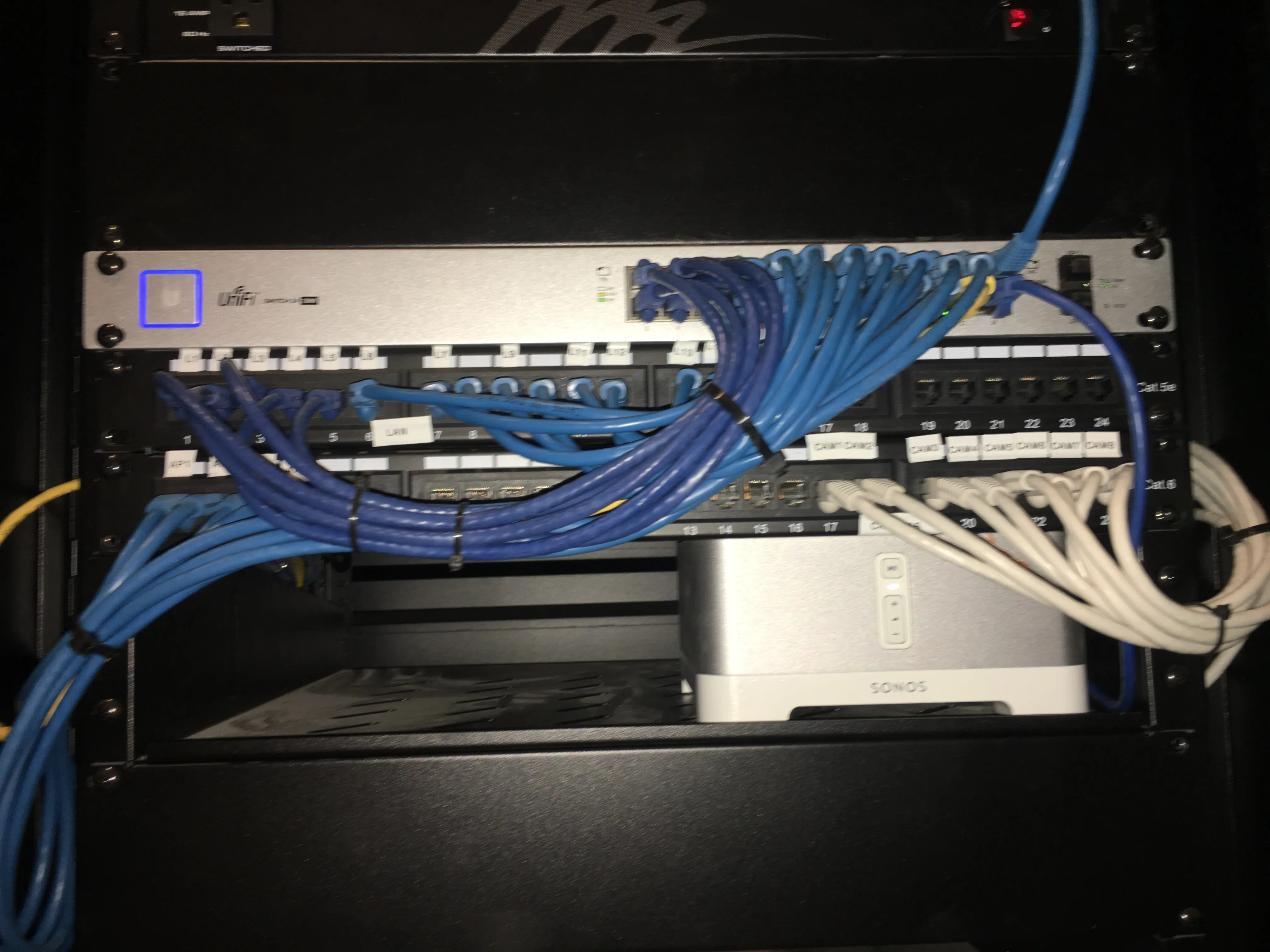

07Terminated network runs brought into the patch panels and switch.

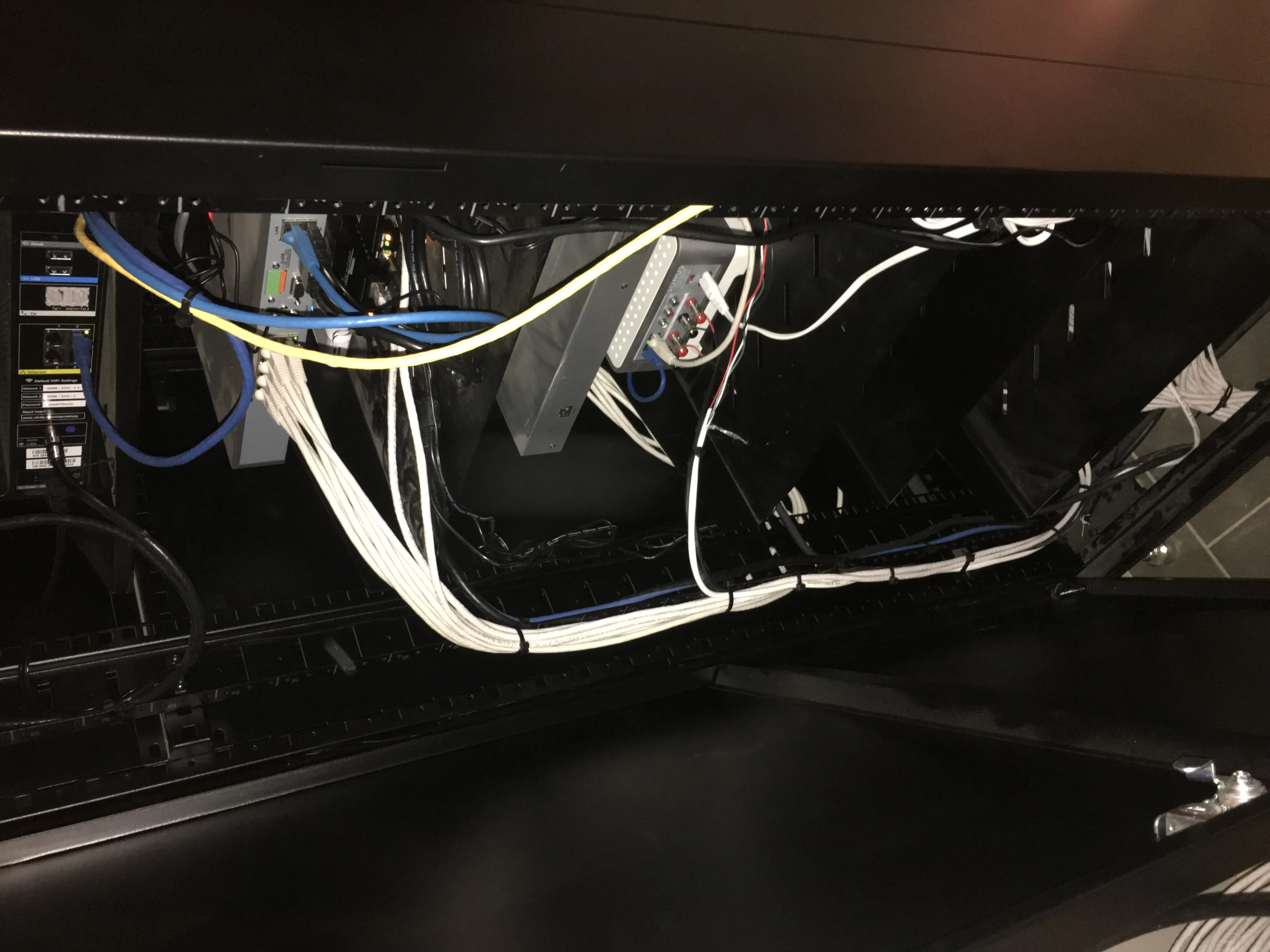

Side view inside the equipment rack showing network and AV cabling
08Service access and cable paths inside the rack during commissioning.
Completed equipment rack with network, surveillance, AV, and control hardware
09The installed rack consolidating network, surveillance, AV, and control equipment.
